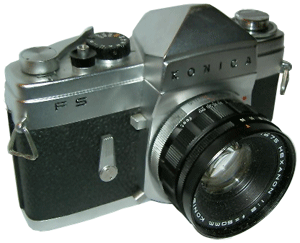

The Konica Model "FS" Camera




Features

NEGATIVE SIZE: 24 X 36 mm
FILM: 35 mm in safety cartridge
STANDARD LENS: HEXANON f.2, f = 50 mm, improved amber-coated
anastigmat of 6 - element, 5 - group construction;
minimum distance range, 0.6 meter
LENS MOUNT: Bayonet flange KONICA MOUNT
(40 mm diameter, flange 40.5 mm)
APERTURE MECHANISM: Full automatic closing to pre-selected
setting, manual closing for depth of field check.
VIEWFINDER: Pentoprism reflex type, correct picture - size image at eye level.
REFLEX MIRROR: Full automatic, quick return, perpendicular action mirror
SHUTTER: HIGHSYNCHRO all metal, focal - plane type, equidistantly
scaled in multiples of 2, single axis non - rotating shutter speed
dial. Settings: B, 1, 2, 4, 8, 15, 30, 60, 125, 250, 500, and 1000
SELF TIMER: Self contained in camera body. Setting angle, 70º. Full delay
SYNCHROFLASH SETTINGS: Duration, approximately 10 seconds
M and X settings. M setting gives full flash synchronization at all shutter speeds
(automatic time lag adjustment) with class M flash bulbs.
Synchronization accurate up to and including 1/125 second with
electronic flash strobe. Flashgun connection, JIS type B
COCKING LEVER: Single stroke thumb operated type (180º swing).
Simultaneous film advance and shutter cocking
positive double exposure prevention
OTHER FEATURES: Automatic exposure counter (self re-setting).
Crank film rewind. Self re-setting rewind button.
LENS HOOD: Slip - over type. 57 mm diameter
FILTERS: Screw-in type. 55 mm diameter. 0.75 mm screw pitch
DIMENSIONS & WEIGHT: 145 X 102.5 X 80 mm. 940 grams (with standard lens)
